1061940000 | Weidmüller

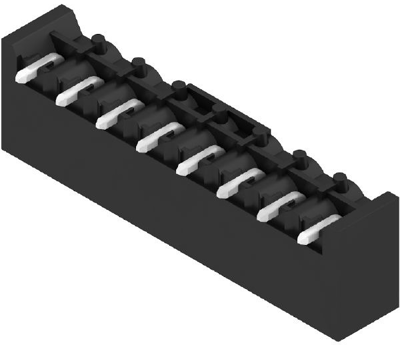

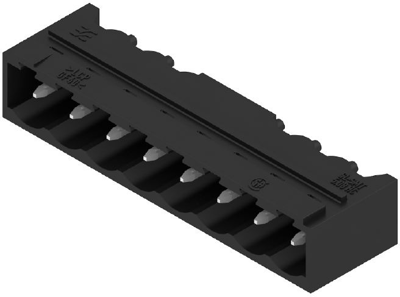

Pin header, 8 pole, pitch 5.08 mm, angled, black, 1061940000
Order No.: 50P4453
EAN: 4032248811489
MPN:
1061940000
SL-SMT 5.08HC/08/90G 1.5SN BK RL
Unit Price (€ / pc.)
2.1658 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 1061940000, Weidmüller
PCB Connector, Male Connector, Side Closed, THT/THR Solder Termination, 5.08 mm, No. of Poles: 8, 90°, 1.5 mm, tinned, black, Tape (Ø 330).
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Rated voltage | 400 V | |
| Orientation | angled | |
| Number of rows | 1 | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 27.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
