1061040000 | Weidmüller

Pin header, 3 pole, pitch 7.62 mm, straight, black, 1061040000

Order No.: 50P4398
EAN: 4032248810703
MPN:
1061040000
SVF 7.62HP/03/180MF3 SN BK BX
Weidmüller

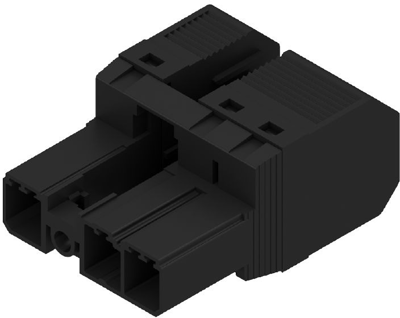

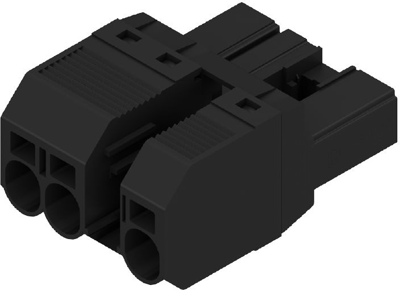

1061040000 Weidmüller PCB Connection Systems Image 1
1061040000 Weidmüller PCB Connection Systems Image 2
1061040000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
4.998 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
5.00 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.998 €

Male connector, 1061040000, Weidmüller

PCB connector, center flange, 7.62 mm, no. of poles: 3, tin plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection spring connection
Number of rows 1
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 1 kV
Rated current 57 A
Orientation straight
Pin number 3 pole
Grid 7.62 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
