1060550000 | Weidmüller
Socket header, 2 pole, pitch 7.62 mm, straight, black, 1060550000
Order No.: 50P4365
EAN: 4032248809981
MPN:
1060550000
BVF 7.62HP/02/180MF2 SN BK BX
Unit Price (€ / pc.)
2.8798 € *
Available in 6 Days: 325 pcs. - if ordered today

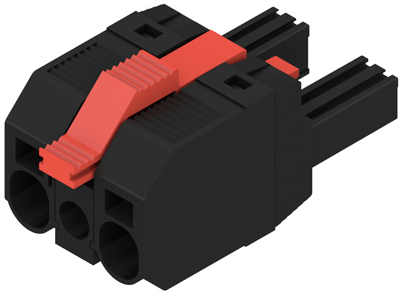

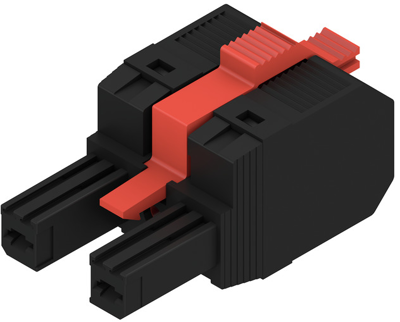

Female connector, 1060550000, Weidmüller
PCB connectors, center flange, 7.62 mm, no. of poles: 2, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 57 A | |
| Rated voltage | 1 kV | |
| Version | socket header | |
| Number of rows | 1 | |
| Orientation | straight | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Pin number | 2 pole | |
| Grid | 7.62 mm | |
| Contact type | socket | |
| Colour | black | |
| Connection | spring connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
