1060450000 | Weidmüller
Socket header, 3 pole, pitch 7.62 mm, straight, black, 1060450000
Order No.: 50P4356
EAN: 4032248810079
MPN:
1060450000
BVF 7.62HP/03/180F SN BK BX
Unit Price (€ / pc.)
5.6168 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
5.62 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6168 €
10 pcs.
5.2241 €
50 pcs.
4.7600 €
*incl. VAT plus shipping costs
Subject to prior sale

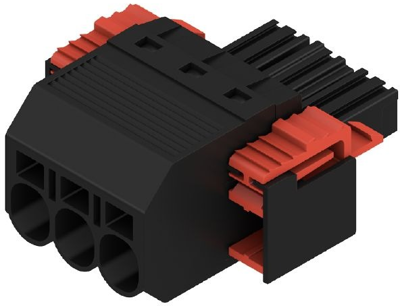

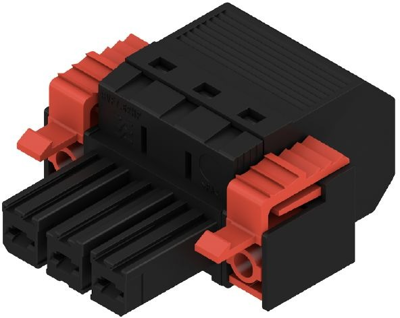

Female connector, 1060450000, Weidmüller
PCB connector, flange, 7.62 mm, no. of poles: 3, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 57 A | |
| Contact type | socket | |
| Grid | 7.62 mm | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Rated voltage | 1 kV | |
| Additional parts | equipped | |
| Connection | spring connection | |
| contact surface | tin-plated | |
| Colour | black | |
| Version | socket header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
