1060440000 | Weidmüller

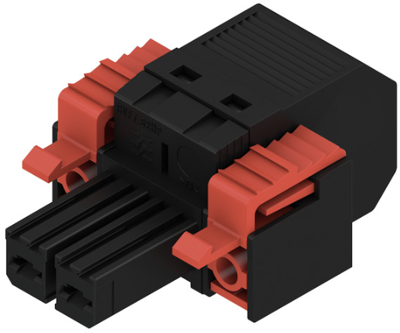

Socket header, 2 pole, pitch 7.62 mm, straight, black, 1060440000
Order No.: 50P4355
EAN: 4032248810086
MPN:
1060440000
BVF 7.62HP/02/180F SN BK BX
Unit Price (€ / pc.)
4.1412 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
4.14 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1412 €
10 pcs.
3.8080 €
50 pcs.
3.4629 €
100 pcs.
3.1178 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1060440000, Weidmüller
PCB connector, flange, 7.62 mm, no. of poles: 2, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 2 pole | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Connection | spring connection | |
| Colour | black | |
| Number of rows | 1 | |
| Grid | 7.62 mm | |
| Rated current | 57 A | |
| Contact type | socket | |
| Version | socket header |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
