1048680000 | Weidmüller

Pin header, 5 pole, pitch 7.62 mm, angled, black, 1048680000

Order No.: 50P3914
EAN: 4032248786350
MPN:
1048680000
SV 7.62HP/05/90MF3 3.5SN BK BX

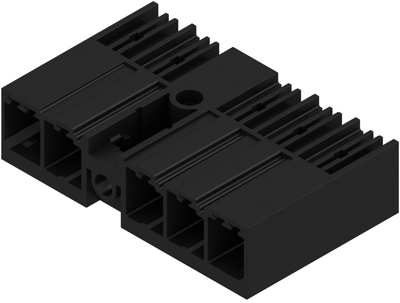

1048680000 Weidmüller PCB Connection Systems Image 1

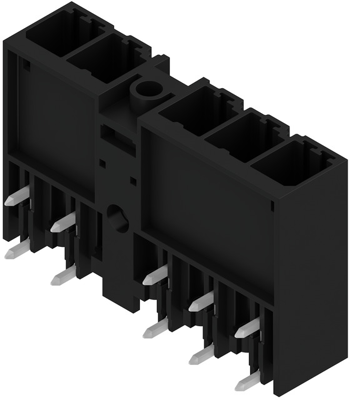

1048680000 Weidmüller PCB Connection Systems Image 2

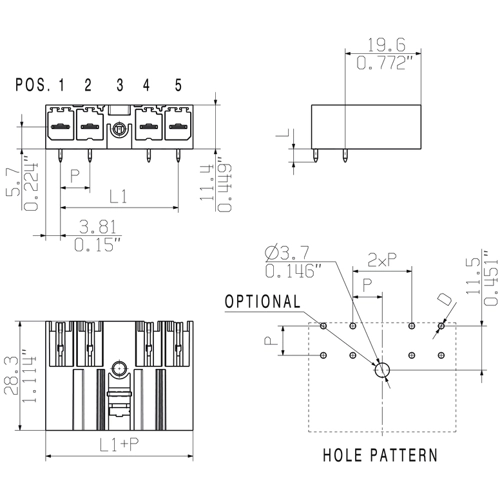

1048680000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.8786 € *
Available: 0 pcs.
Available in 6 Days: 72 pcs.
Leadtime: On Request **
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.4740 €
50 pcs.
4.9742 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male connector, 1048680000, Weidmüller

PCB Connector, closed side, center flange, THT solder termination, 7.62 mm, no. of poles: 5, 90°, 3.5 mm, tinned, black, Box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Connection Leiterplattenanschluss
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour schwarz
Contact type Stift
contact surface verzinnt
Rated voltage 1 kV
Rated current 57 A
Orientation abgewinkelt
Pin number 5-polig
Grid 7.62 mm
Logistics
Country of origin RO
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
