1048640000 | Weidmüller
Pin header, 5 pole, pitch 7.62 mm, angled, black, 1048640000
Order No.: 50P3910
EAN: 4032248786398
MPN:
1048640000
SV 7.62HP/05/270MF3 3.5SN BK BX
Unit Price (€ / pc.)
5.7120 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.71 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7120 €
10 pcs.
5.3193 €
50 pcs.
4.8314 €
*incl. VAT plus shipping costs
**Subject to prior sale

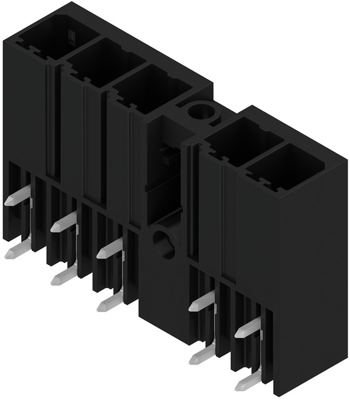

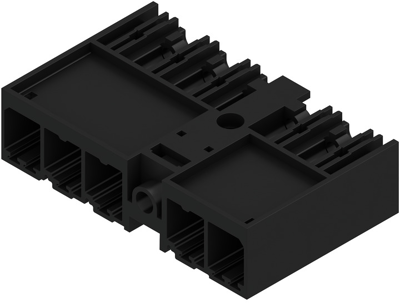

Male connector, 1048640000, Weidmüller
PCB Connector, lateral closed, center flange, THT solder termination, 7.62 mm, no. of poles: 5, 270°, 3.5 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | PCB connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Rated current | 57 A | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
