1043910000 | Weidmüller
Socket header, 2 pole, pitch 7.62 mm, straight, black, 1043910000
Order No.: 50P3751
EAN: 4032248775453
MPN:
1043910000
BLF 7.62HP/02/180F SN BK BX
Unit Price (€ / pc.)
3.4510 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
3.45 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4510 €
10 pcs.
3.2011 €
50 pcs.
2.8917 €
*incl. VAT plus shipping costs
Subject to prior sale

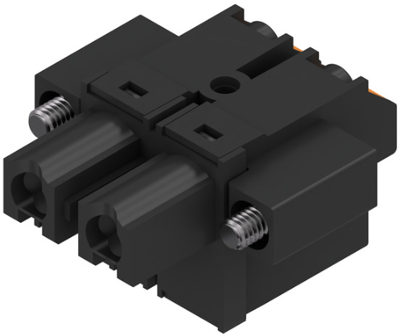

Female connector, 1043910000, Weidmüller
PCB connector, flange, 7.62 mm, no. of poles: 2, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 1 kV | |
| Orientation | straight | |
| Pin number | 2 pole | |
| Version | socket header | |
| Colour | black | |
| Grid | 7.62 mm | |
| Rated current | 24 A | |
| Contact type | socket | |
| Number of rows | 1 | |
| Connection | spring connection | |
| contact surface | tin-plated | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
