1043750000 | Weidmüller
Pin header, 2 pole, pitch 7.62 mm, straight, black, 1043750000
Order No.: 50P3735
EAN: 4032248775323
MPN:
1043750000
SLF 7.62HP/02/180LR SN BK BX
Unit Price (€ / pc.)
2.5585 € *
Standard delivery time from the manufacturer is: 7 Weeks

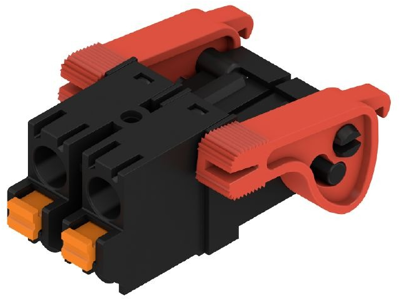

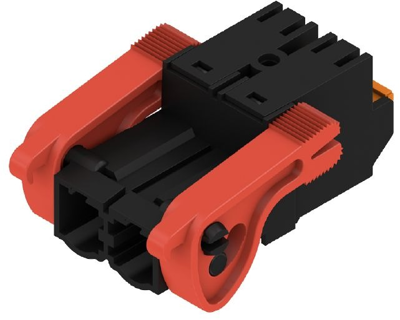

Male connector, 1043750000, Weidmüller
Printed circuit board connector, release latch, 7.62 mm, no. of poles: 2, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 2 pole | |
| Grid | 7.62 mm | |
| Connection | spring connection | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Rated voltage | 1 kV | |
| Rated current | 24 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
