1043260000 | Weidmüller
Socket header, 5 pole, pitch 7.62 mm, angled, black, 1043260000
Order No.: 50P3708
EAN: 4032248774838
MPN:
1043260000
BLL 7.62HP/05/90 3.2SN BK BX
Unit Price (€ / pc.)
4.6648 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
4.66 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6648 €
10 pcs.
4.3316 €
50 pcs.
3.9032 €
*incl. VAT plus shipping costs
Subject to prior sale

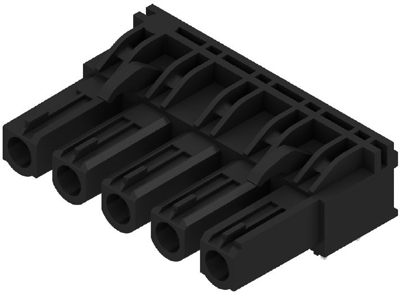

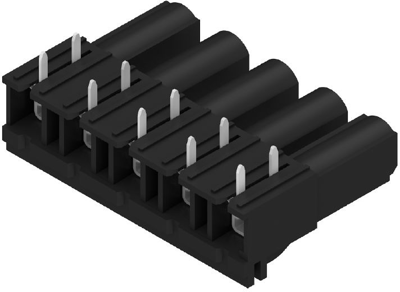

Female connector, 1043260000, Weidmüller
Printed Circuit Board Connector, laterally closed, THT solder termination, 7.62 mm, no. of poles: 5, 90°, 3.2 mm, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 24 A | |
| Grid | 7.62 mm | |
| Pin number | 5 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | socket | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
