1041040000 | Weidmüller

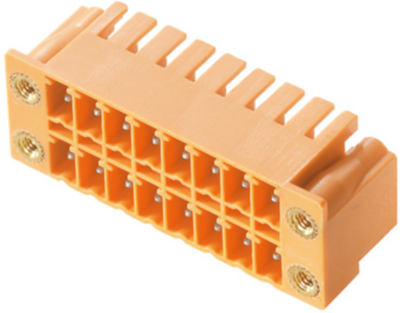

Pin header, 20 pole, pitch 3.81 mm, angled, orange, 1041040000
Order No.: 50P3666
EAN: 4032248769889
MPN:
1041040000
SCDN 3.81/20/90F 3.2SN OR BX
Unit Price (€ / pc.)
8.3657 € *
Available in 6 Days: 250 pcs. - if ordered today
Male connector, 1041040000, Weidmüller
PCB connectors, flange, THT solder termination, 3.81 mm, no. of poles: 20, 90°, 3.2 mm, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 320 V | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Number of rows | 2 | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Version | pin header | |
| Colour | orange | |
| Connection | PCB connection | |
| Pin number | 20 pole | |
| Additional parts | equipped | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
