1040570000 | Weidmüller

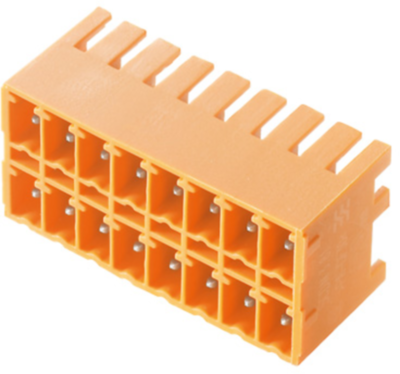

Pin header, 32 pole, pitch 3.81 mm, angled, orange, 1040570000
Order No.: 50P3642
EAN: 4032248769216
MPN:
1040570000
SCDN 3.81/32/90G 3.2SN OR BX
Unit Price (€ / pc.)
11.9714 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1040570000, Weidmüller
Printed Circuit Board Connector, closed side, THT solder termination, 3.81 mm, no. of poles: 32, 90°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 32 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
