1039100000 | Weidmüller
Pin header, 32 pole, pitch 3.81 mm, angled, black, 1039100000
Order No.: 50P3573
EAN: 4032248772438
MPN:
1039100000
SCDN-THR 3.81/32/90G 3.2SN BK BX
Unit Price (€ / pc.)
13.1733 € *
Standard delivery time from the manufacturer is: 12 Weeks

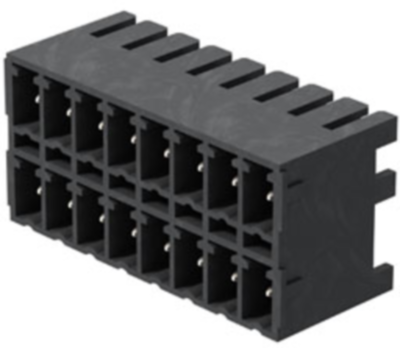

Male connector, 1039100000, Weidmüller
PCB Connector, Side-Closed, THT/THR Solder Termination, 3.81 mm, No. of Poles: 32, 90°, 3.2 mm, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Grid | 3.81 mm | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Orientation | angled | |
| Colour | black | |
| Rated current | 17.5 A | |
| Connection | PCB connection | |
| Pin number | 32 pole | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
