1034590000 | Weidmüller
Pin header, 24 pole, pitch 3.81 mm, straight, orange, 1034590000
Order No.: 50P3381
EAN: 4032248763412
MPN:
1034590000
SCDV 3.81/24/180G 3.2SN OR BX
Unit Price (€ / pc.)
8.3657 € *
Standard delivery time from the manufacturer is: 12 Weeks

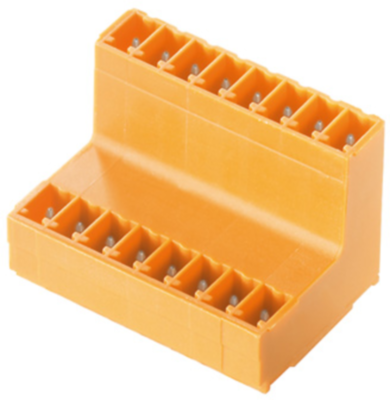

Male connector, 1034590000, Weidmüller
Printed Circuit Board Connector, lateral closed, THT solder termination, 3.81 mm, no. of poles: 24, 180°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 24 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
