1034570000 | Weidmüller

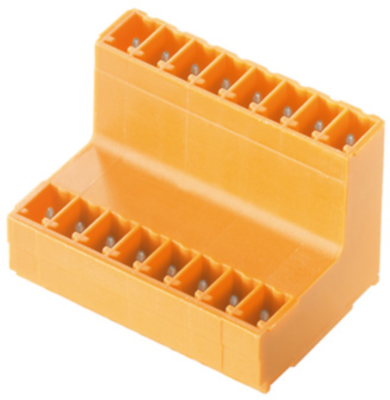

Pin header, 20 pole, pitch 3.81 mm, straight, orange, 1034570000
Order No.: 50P3379
EAN: 4032248763399
MPN:
1034570000
SCDV 3.81/20/180G 3.2SN OR BX
Unit Price (€ / pc.)
6.9734 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1034570000, Weidmüller
Board Connector, lateral closed, THT solder termination, 3.81 mm, no. of poles: 20, 180°, 3.2 mm, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | PCB connection | |
| Rated voltage | 320 V | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 20 pole | |
| Additional parts | equipped | |
| Colour | orange | |
| Version | pin header | |
| Rated current | 17.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
