1033590000 | Weidmüller

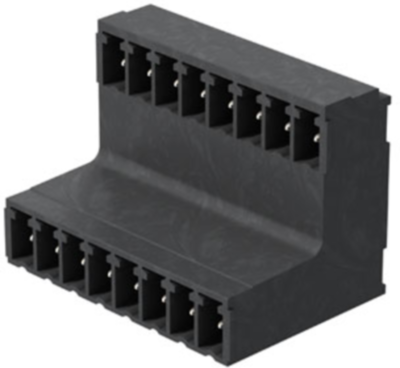

Pin header, 22 pole, pitch 3.81 mm, angled, black, 1033590000
Order No.: 50P3342
EAN: 4032248762507
MPN:
1033590000
SCDV-THR 3.81/22/90G 3.2SN BK BX
Unit Price (€ / pc.)
8.4371 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1033590000, Weidmüller

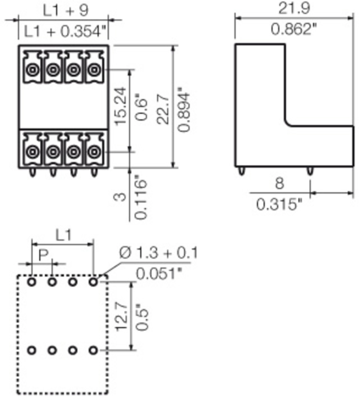

Board Connector, lateral closed, THT/THR solder termination, 3.81 mm, no. of poles: 22, 90°, 3.2 mm, tin plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 22 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
