1032290000 | Weidmüller
Pin header, 10 pole, pitch 3.81 mm, angled, green, 1032290000
Order No.: 50P0115
EAN: 4032248771585
MPN:
1032290000
SCDV 3.81/10/90G 3.2SN GN BX
Unit Price (€ / pc.)
4.5458 € *
Available in 6 Days: 250 pcs. - if ordered today
Total Price:
4.55 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5458 €
10 pcs.
4.0936 €
50 pcs.
3.8318 €
100 pcs.
3.6057 €
*incl. VAT plus shipping costs
Subject to prior sale

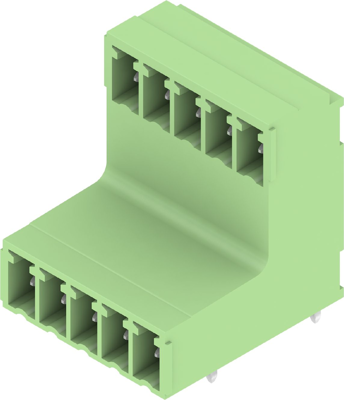

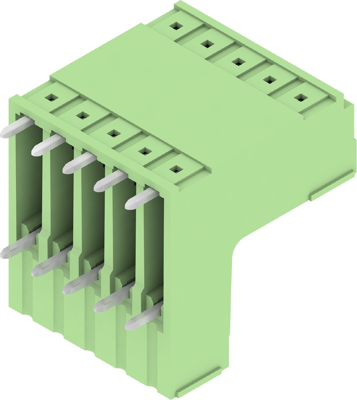

PCB plug-in connector, 1032290000, Weidmüller
PCB plug-in connector, male header, closed side, THT solder connection, 3.81 mm, Number of poles: 10, 90°, Solder pin length (l): 3.2 mm, tinned, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | tin-plated | |
| Pin number | 10 pole | |
| Type of locking | No | |
| Rated voltage | 320 V | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 3.81 mm | |
| Number of rows | 2 | |
| Connection | solder connection | |
| Rated current | 17.5 A | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
