1032140000 | Weidmüller

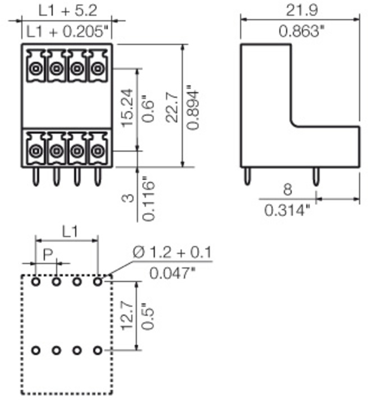

Pin header, 12 pole, pitch 3.81 mm, angled, orange, 1032140000
Order No.: 50P3287
EAN: 4032248771448
MPN:
1032140000
SCDV 3.81/12/90G 3.2SN OR BX
Unit Price (€ / pc.)
4.2721 € *
Standard delivery time from the manufacturer is: 9 Weeks
Male connector, 1032140000, Weidmüller
Board Connector, lateral closed, THT solder termination, 3.81 mm, no. of poles: 12, 90°, 3.2 mm, tin plated, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Pin number | 12 pole | |
| Colour | orange | |
| Contact type | pin | |
| Rated current | 17.5 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Orientation | angled |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
