1031660000 | Weidmüller

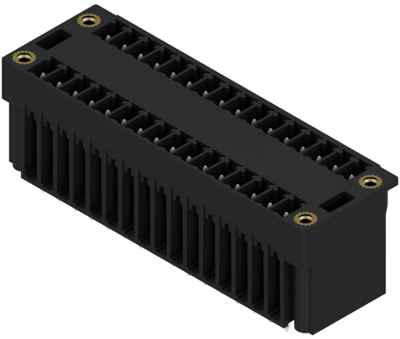

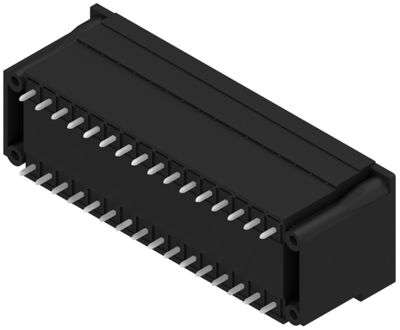

Pin header, 32 pole, pitch 3.81 mm, straight, black, 1031660000
Order No.: 50P3278
EAN: 4032248760626
MPN:
1031660000
SCD-THR 3.81/32/180F 3.2SN BK BX
Unit Price (€ / pc.)
13.3756 € *
Standard delivery time from the manufacturer is: 12 Weeks
Male connector, 1031660000, Weidmüller
Printed Circuit Board Connector, Flange, THT/THR Solder Termination, 3.81 mm, No. of Poles: 32, 180°, 3.2 mm, Tin Plated, Black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 17.5 A | |
| Grid | 3.81 mm | |
| Pin number | 32 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 320 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
