1030570000 | Weidmüller

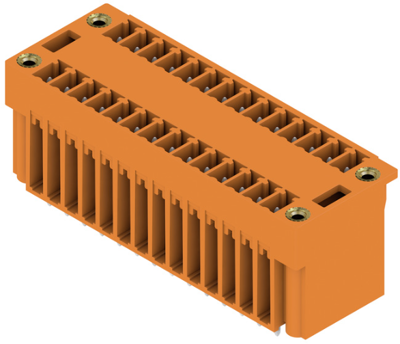

Pin header, 28 pole, pitch 3.81 mm, straight, orange, 1030570000
Order No.: 50P3228
EAN: 4032248759705
MPN:
1030570000
SCD 3.81/28/180F 3.2SN OR BX
Unit Price (€ / pc.)
15.0416 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
15.04 € *
Price list
Quantity
Price per unit*
1 pcs.
15.0416 €
10 pcs.
13.9825 €
50 pcs.
12.8758 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1030570000, Weidmüller
PCB connector, flange, THT solder termination, 3.81 mm, no. of poles: 28, 180°, 3.2 mm, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.81 mm | |
| Pin number | 28 pole | |
| Colour | orange | |
| Contact type | pin | |
| Rated current | 17.5 A | |
| Version | pin header | |
| Connection | PCB connection | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Rated voltage | 320 V | |
| contact surface | tin-plated | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
