1028770000 | Weidmüller

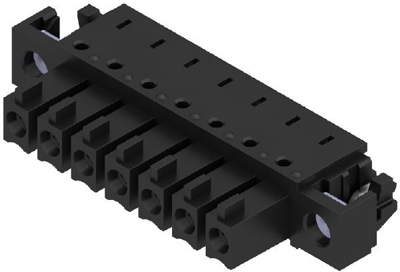

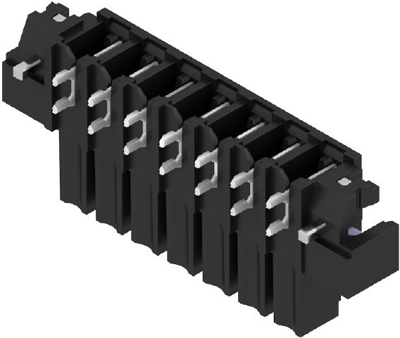

Socket header, 7 pole, pitch 3.81 mm, angled, black, 1028770000
Order No.: 50P3151
EAN: 4032248758067
MPN:
1028770000
BCL-SMT 3.81/07/90LFI 1.5SN BK BX
Unit Price (€ / pc.)
4.2602 € *
Standard delivery time from the manufacturer is: 12 Weeks
Female connector, 1028770000, Weidmüller
PCB connector, solder flange inverted, THT/THR solder termination, 3.81 mm, no. of poles: 7, 90°, 1.5 mm, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | socket | |
| Grid | 3.81 mm | |
| Colour | black | |
| contact surface | tin-plated | |
| Version | socket header | |
| Additional parts | equipped | |
| Rated current | 17.5 A | |
| Number of rows | 1 | |
| Pin number | 7 pole | |
| Orientation | angled | |
| Connection | PCB connection | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
