1026870000 | Weidmüller

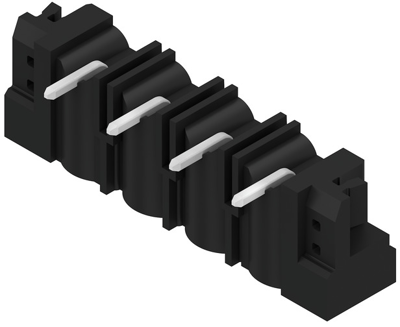

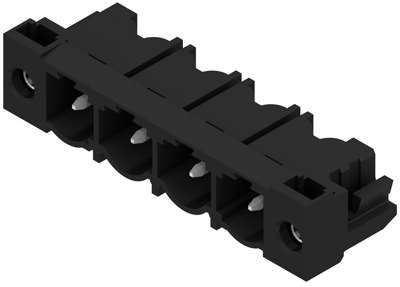

Pin header, 4 pole, pitch 7.62 mm, angled, black, 1026870000
Order No.: 50P3080
EAN: 4032248752362
MPN:
1026870000
SL 7.62HP/04/90F 3.2 SN BK BX
Unit Price (€ / pc.)
2.4276 € *
Available in 6 Days: 84 pcs. - if ordered today
Total Price:
2.43 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4276 €
10 pcs.
2.2372 €
50 pcs.
2.0349 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1026870000, Weidmüller
Printed circuit board connector, flange, THT solder termination, 7.62 mm, no. of poles: 4, 90°, 3.2 mm, tin-plated, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 29 A | |
| Grid | 7.62 mm | |
| Pin number | 4 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | PCB connection | |
| Contact type | pin | |
| Rated voltage | 630 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
