1026770000 | Weidmüller

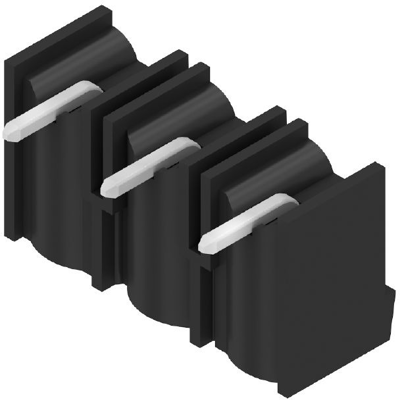

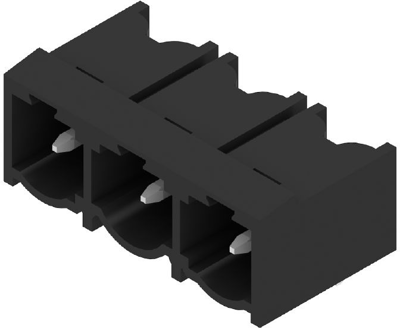

Pin header, 3 pole, pitch 7.62 mm, angled, black, 1026770000
Order No.: 50P3071
EAN: 4032248752171
MPN:
1026770000
SL 7.62HP/03/90G 3.2SN BK BX
Unit Price (€ / pc.)
1.2733 € *
Available: 0 pcs.
Available in 6 Days: 200 pcs.
Leadtime: On Request **
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2733 €
10 pcs.
1.1781 €
50 pcs.
1.0710 €
100 pcs.
0.9639 €
*incl. VAT plus shipping costs
**Subject to prior sale
Male connector, 1026770000, Weidmüller
Printed Circuit Board Connector, sideways closed, THT solder termination, 7.62 mm, no. of poles: 3, 90°, 3.2 mm, tin-plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Connection | Leiterplattenanschluss | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 630 V | |
| Rated current | 29 A | |
| Orientation | abgewinkelt | |
| Pin number | 3-polig | |
| Grid | 7.62 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
