1017760000 | Weidmüller

Socket header, 10 pole, pitch 5 mm, straight, black, 1017760000

Order No.: 50P2729
EAN: 4032248728763
MPN:
1017760000
BLF 5.00HC/10/180 SN BK BX

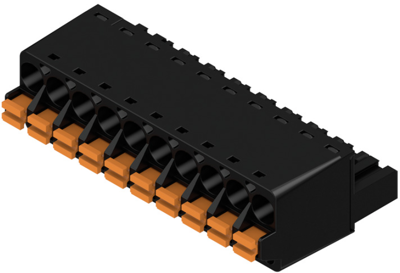

1017760000 Weidmüller PCB Connection Systems Image 1

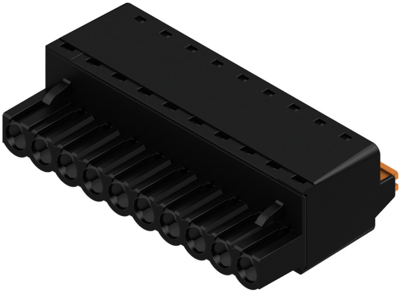

1017760000 Weidmüller PCB Connection Systems Image 2
1017760000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.7834 € *
Available in 6 Days: 180 pcs. - if ordered today
Total Price:
5.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
5.7834 €

Female connector, 1017760000, Weidmüller

Printed circuit board connector, closed side, 5.00 mm, no. of poles: 10, tin-plated, black, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Connection spring connection
Colour black
Additional parts equipped
Pin number 10 pole
Contact type socket
Orientation straight
Rated voltage 400 V
contact surface tin-plated
Version socket header
Rated current 23 A
Number of rows 1
Grid 5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
