1017620000 | Weidmüller

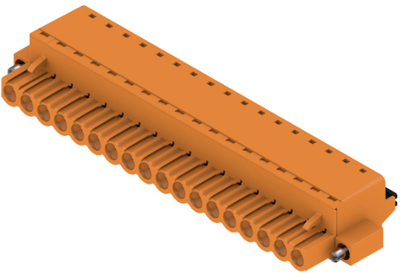

Socket header, 18 pole, pitch 5 mm, straight, orange, 1017620000
Order No.: 50P2719
EAN: 4032248727643
MPN:
1017620000
BLF 5.00HC/18/180F SN OR BX
Unit Price (€ / pc.)
10.5910 € *
Standard delivery time from the manufacturer is: 7 Weeks
Female connector, 1017620000, Weidmüller
PCB connector, flange, 5.00 mm, no. of poles: 18, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | spring connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 18 pole | |
| Additional parts | equipped | |
| Colour | orange | |
| Version | socket header | |
| Rated current | 23 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
