1017590000 | Weidmüller

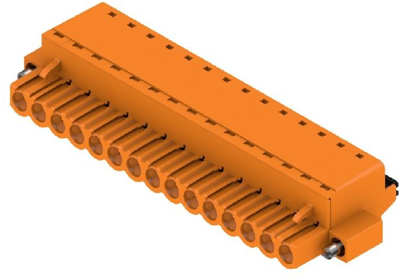

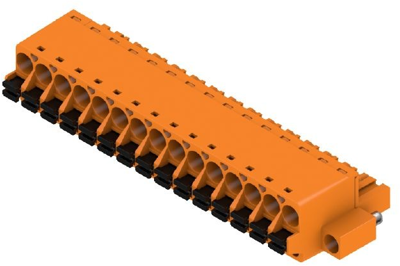

Socket header, 15 pole, pitch 5 mm, straight, orange, 1017590000
Order No.: 50P2716
EAN: 4032248727674
MPN:
1017590000
BLF 5.00HC/15/180F SN OR BX
Unit Price (€ / pc.)
12.3284 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
12.33 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3284 €
10 pcs.
11.4716 €
50 pcs.
10.4482 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1017590000, Weidmüller
PCB connector, flange, 5.00 mm, no. of poles: 15, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | spring connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 15 pole | |
| Additional parts | equipped | |
| Colour | orange | |
| Version | socket header | |
| Rated current | 23 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
