1016450000 | Weidmüller

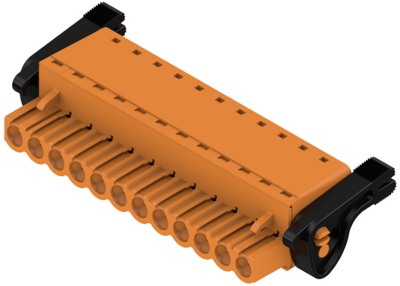

Socket header, 12 pole, pitch 5 mm, straight, orange, 1016450000
Order No.: 50P2671
EAN: 4032248725687
MPN:
1016450000
BLF 5.00HC/12/180LR SN OR BX
Unit Price (€ / pc.)
7.3542 € *
Standard delivery time from the manufacturer is: 7 Weeks
Female connector, 1016450000, Weidmüller
Printed circuit board connector, release latch, 5.00 mm, no. of poles: 12, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 23 A | |
| Grid | 5 mm | |
| Pin number | 12 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
