1016440000 | Weidmüller

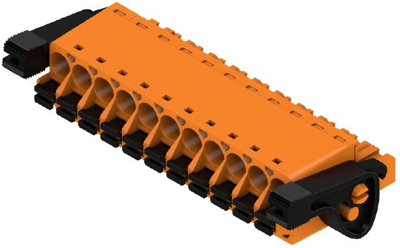

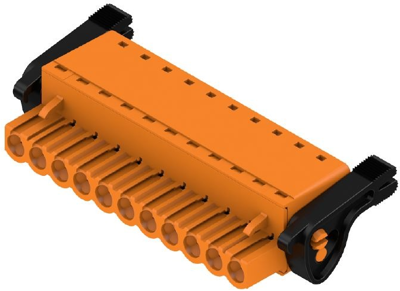

Socket header, 11 pole, pitch 5 mm, straight, orange, 1016440000
Order No.: 50P2670
EAN: 4032248725694
MPN:
1016440000
BLF 5.00HC/11/180LR SN OR BX
Unit Price (€ / pc.)
9.4129 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
9.41 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4129 €
10 pcs.
8.7584 €
50 pcs.
7.9730 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, 1016440000, Weidmüller
PCB connector, release latch, 5.00 mm, no. of poles: 11, tin-plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 23 A | |
| Grid | 5 mm | |
| Pin number | 11 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
