1016350000 | Weidmüller
Socket header, 3 pole, pitch 5 mm, straight, orange, 1016350000
Order No.: 50P2661
EAN: 4032248725779
MPN:
1016350000
BLF 5.00HC/03/180LR SN OR BX
Unit Price (€ / pc.)
3.1892 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
3.19 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1892 €
10 pcs.
2.9631 €
50 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale

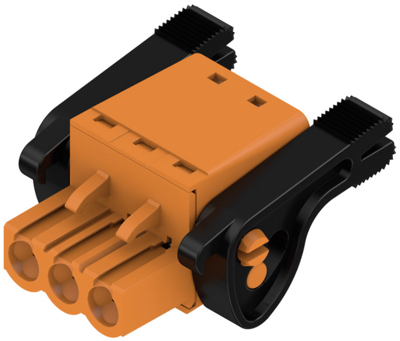

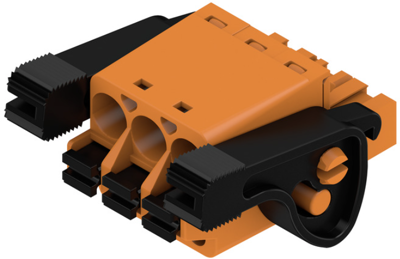

Female connector, 1016350000, Weidmüller
Printed circuit board connector, solder latch, 5.00 mm, no. of poles: 3, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | spring connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Pin number | 3 pole | |
| Additional parts | equipped | |
| Colour | orange | |
| Version | socket header | |
| Rated current | 23 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
