1015790000 | Weidmüller

Socket header, 8 pole, pitch 5 mm, straight, orange, 1015790000

Order No.: 50P4653
EAN: 4032248724925
MPN:
1015790000
BLF 5.00HC/08/180LH SN OR BX

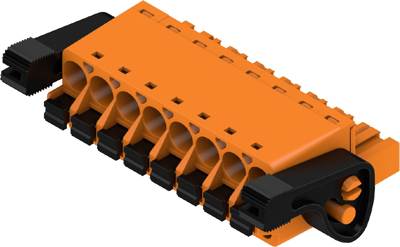

1015790000 Weidmüller PCB Connection Systems Image 1

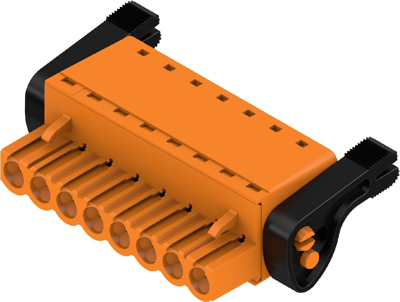

1015790000 Weidmüller PCB Connection Systems Image 2

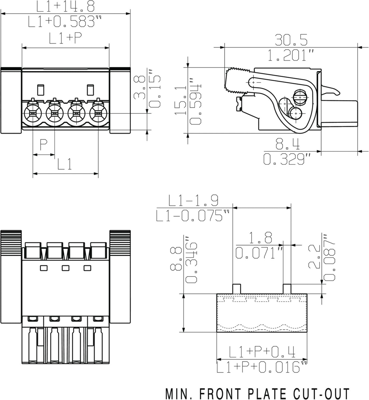

1015790000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
6.4260 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4260 €
10 pcs.
5.9857 €
50 pcs.
5.6049 €
100 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1015790000, Weidmüller

PCB plug-in connector, female plug, 5.00 mm, Number of poles: 8, 180°, PUSH IN with actuator, Clamping range, max. : 3.31 mm².

Technical specifications
Filter Property Value
Version socket header
contact surface tin-plated
Rated voltage 400 V
Orientation straight
Number of rows 1
Rated current 23 A
Colour orange
Contact type socket
Pin number 8 pole
Grid 5 mm
Connection push-in
Logistics
Property Value
Country of origin RO
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
