1015680000 | Weidmüller
Socket header, 15 pole, pitch 5 mm, straight, black, 1015680000
Order No.: 50P4697
EAN: 4032248725021
MPN:
1015680000
BLF 5.00HC/15/180LH SN BK BX
Unit Price (€ / pc.)
11.1741 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
11.17 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1741 €
10 pcs.
10.4125 €
50 pcs.
9.7461 €
100 pcs.
9.1630 €
*incl. VAT plus shipping costs
Subject to prior sale

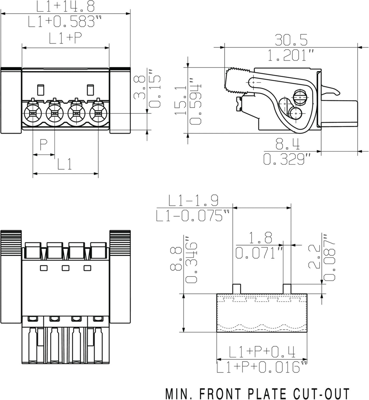

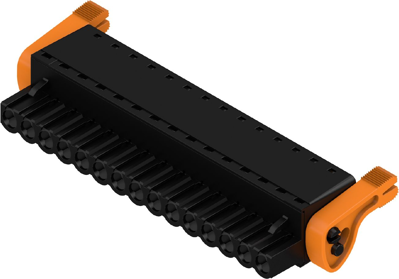

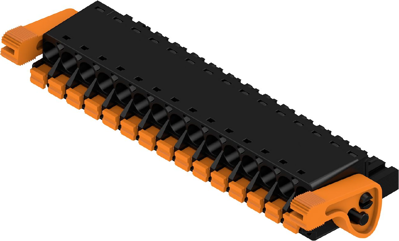

PCB plug-in connector, 1015680000, Weidmüller
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 15, 180°, PUSH IN with actuator, Clamping range, max. : 3.31 mm².
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | tin-plated | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Rated current | 23 A | |
| Colour | black | |
| Contact type | socket | |
| Pin number | 15 pole | |
| Grid | 5 mm | |
| Connection | push-in |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
