1015600000 | Weidmüller
Socket header, 8 pole, pitch 5 mm, straight, black, 1015600000
Order No.: 50P4645
EAN: 4032248725090
MPN:
1015600000
BLF 5.00HC/08/180LH SN BK BX
Unit Price (€ / pc.)
6.4260 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
6.43 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4260 €
10 pcs.
5.9857 €
50 pcs.
5.6049 €
100 pcs.
5.2717 €
*incl. VAT plus shipping costs
Subject to prior sale

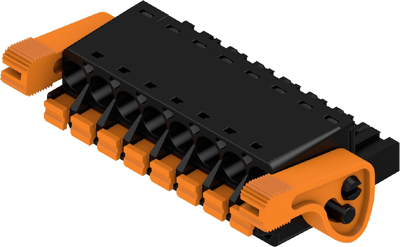

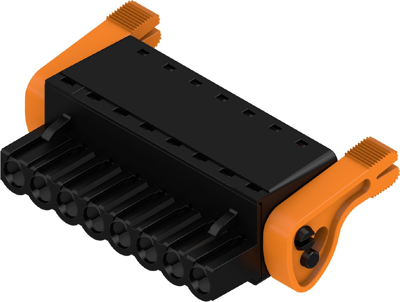

PCB plug-in connector, 1015600000, Weidmüller
PCB plug-in connector, female plug, 5.00 mm, Number of poles: 8, 180°, PUSH IN with actuator, Clamping range, max. : 3.31 mm².
Technical specifications
Filter | Property | Value |
---|---|---|
Version | socket header | |
contact surface | tin-plated | |
Rated voltage | 400 V | |
Orientation | straight | |
Number of rows | 1 | |
Rated current | 23 A | |
Colour | black | |
Contact type | socket | |
Pin number | 8 pole | |
Grid | 5 mm | |
Connection | push-in |
Download
Logistics
Property | Value |
---|---|
Country of origin | RO |
Customs tariff number | 85366990 |
Compliance
Property | Value |
---|---|
SVHC free | No |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
