1014820000 | Weidmüller

Socket header, 10 pole, pitch 5.08 mm, straight, black, 1014820000

Order No.: 50P4815
EAN: 4032248724109
MPN:
1014820000
BLF 5.08HC/10/180LH SN BK BX

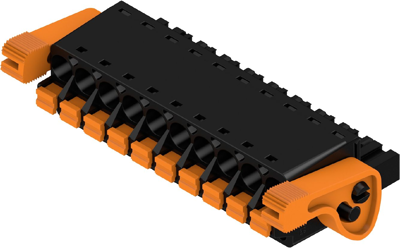

1014820000 Weidmüller PCB Connection Systems Image 1

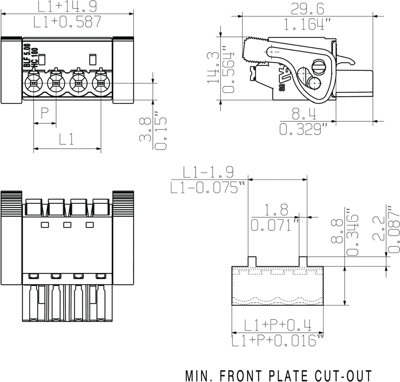

1014820000 Weidmüller PCB Connection Systems Image 2

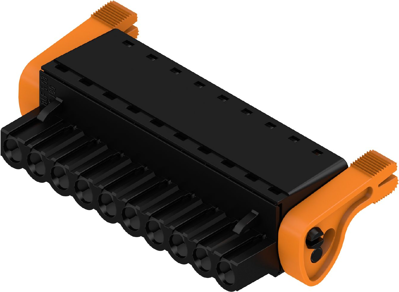

1014820000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
7.8659 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
7.87 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8659 €
10 pcs.
7.3304 €
50 pcs.
6.8663 €
100 pcs.
6.4617 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1014820000, Weidmüller

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 10, 180°, PUSH IN with actuator, Clamping range, max. : 3.31 mm².

Technical specifications
Filter Property Value
Version socket header
contact surface tin-plated
Rated voltage 400 V
Orientation straight
Number of rows 1
Rated current 24 A
Colour black
Contact type socket
Pin number 10 pole
Grid 5.08 mm
Connection push-in
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
