1014560000 | Weidmüller

Pin header, 19 pole, pitch 5.08 mm, straight, orange, 1014560000

Order No.: 50P2617
EAN: 4032248722815
MPN:
1014560000
BLF 5.08HC/19/180LR SN OR BX

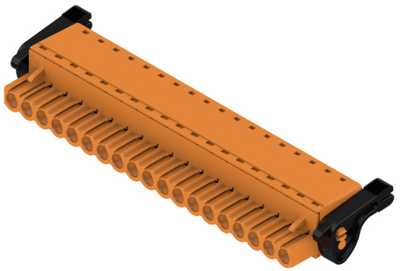

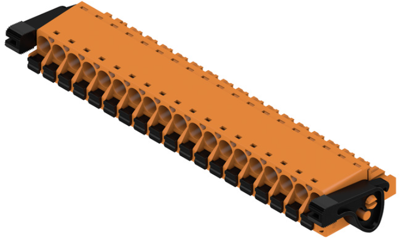

1014560000 Weidmüller PCB Connection Systems Image 1
1014560000 Weidmüller PCB Connection Systems Image 2
1014560000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
15.7675 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
15.77 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7675 €
10 pcs.
14.6727 €
50 pcs.
13.4827 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connector, 1014560000, Weidmüller

Printed circuit board connector, male header, release latch, 5.08 mm, no. of poles: 19, tin plated, orange, box

Pluggable PCB connector with innovative connection technology for safe and intuitive handling.

Technical specifications
Filter Property Value
Colour orange
contact surface tin-plated
Rated current 24 A
Grid 5.08 mm
Pin number 19 pole
Version pin header
Additional parts equipped
Orientation straight
Connection spring connection
Contact type pin
Rated voltage 400 V
Number of rows 1
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
