1014140000 | Weidmüller
Pin header, 4 pole, pitch 5.08 mm, straight, black, 1014140000
Order No.: 50P2581
EAN: 4032248723195
MPN:
1014140000
BLF 5.08HC/04/180LR SN BK BX
Unit Price (€ / pc.)
4.0222 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
4.02 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0222 €
10 pcs.
3.7485 €
50 pcs.
3.3677 €
*incl. VAT plus shipping costs
Subject to prior sale

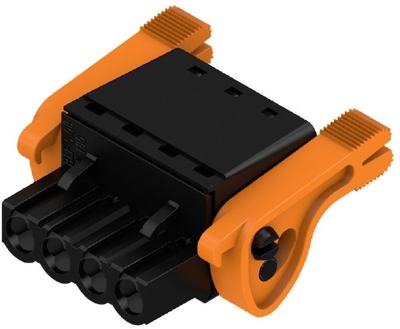

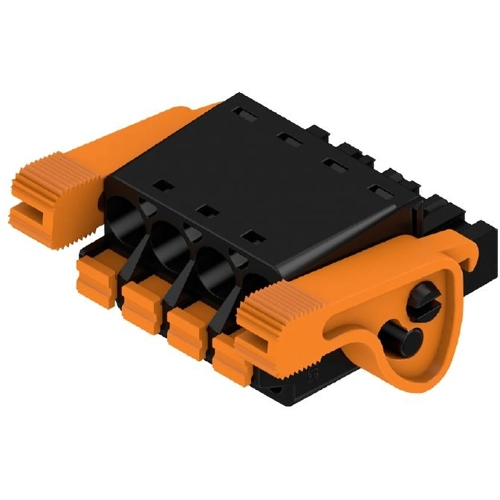

Male connector, 1014140000, Weidmüller
Printed circuit board connector, male header, release latch, 5.08 mm, no. of poles: 4, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 24 A | |
| Contact type | pin | |
| Colour | black | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | spring connection | |
| Orientation | straight | |
| Grid | 5.08 mm | |
| Rated voltage | 400 V | |
| Pin number | 4 pole | |
| Version | pin header | |
| contact surface | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
