1013970000 | Weidmüller

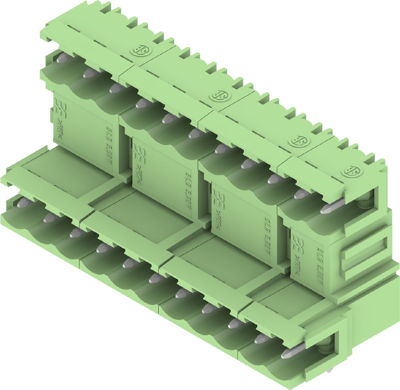

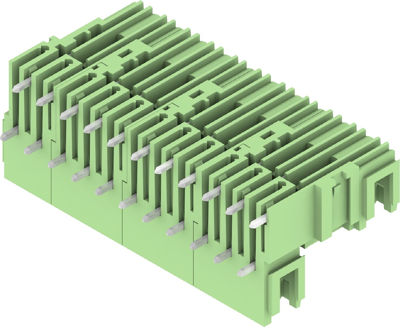

Pin header, 22 pole, pitch 5.08 mm, angled, green, 1013970000

Order No.: 50P4179
EAN: 4032248722068
MPN:
1013970000
SLD 5.08V/22/90B 3.2 SN GN BX
1013970000 Weidmüller PCB Connection Systems Image 1
1013970000 Weidmüller PCB Connection Systems Image 2
1013970000 Weidmüller PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
9.7461 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
9.75 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7461 €
10 pcs.
9.0916 €
50 pcs.
8.5085 €
100 pcs.
7.9968 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB plug-in connector, 1013970000, WEIDMÜLLER

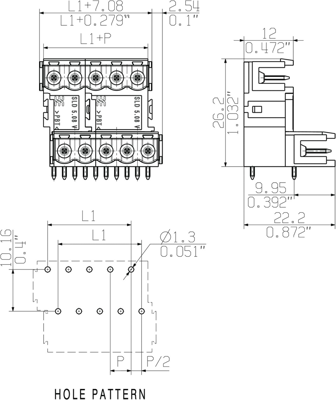

PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.08 mm, Number of poles: 22, 90°, Solder pin length (l): 3.2 mm, tinned, Pale green.

Technical specifications
Filter Property Value
Colour green
Grid 5.08 mm
Number of rows 2
contact surface tin-plated
Rated current 17 A
Connection solder connection
Version pin header
Orientation angled
Pin number 22 pole
Contact type pin
Rated voltage 320 V
Logistics
Property Value
Customs tariff number 85366930
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
