1013940000 | Weidmüller

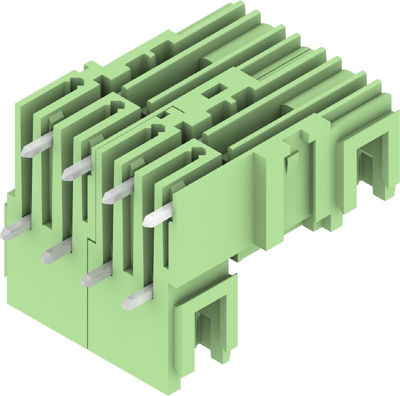

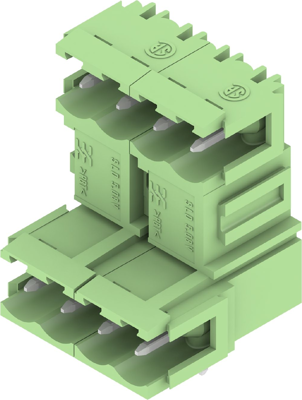

Pin header, 8 pole, pitch 5.08 mm, angled, green, 1013940000
Order No.: 50P4154
EAN: 4032248722037
MPN:
1013940000
SLD 5.08V/08/90B 3.2 SN GN BX
Unit Price (€ / pc.)
3.9032 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9032 €
10 pcs.
3.6057 €
50 pcs.
3.3558 €
100 pcs.
3.1416 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB plug-in connector, 1013940000, WEIDMÜLLER
PCB plug-in connector, male header, Dovetails for fixing blocks, THT solder connection, 5.08 mm, Number of poles: 8, 90°, Solder pin length (l): 3.2 mm, tinned, Pale green.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Grid | 5.08 mm | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Rated current | 17 A | |
| Connection | solder connection | |
| Version | pin header | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Contact type | pin | |
| Rated voltage | 320 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
