1013620000 | Weidmüller

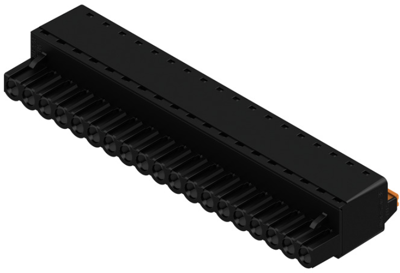

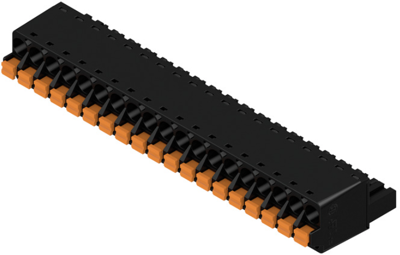

Pin header, 19 pole, pitch 5.08 mm, straight, black, 1013620000
Order No.: 50P2548
EAN: 4032248721757
MPN:
1013620000
BLF 5.08HC/19/180 SN BK BX
Unit Price (€ / pc.)
10.8528 € *
Available in 6 Days: 90 pcs. - if ordered today
Male connector, 1013620000, Weidmüller
Printed circuit board connector, male header, closed sideways, 5.08 mm, no. of poles: 19, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage | 400 V | |
| Rated current | 24 A | |
| Grid | 5.08 mm | |
| Number of rows | 1 | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Colour | black | |
| Connection | spring connection | |
| Pin number | 19 pole | |
| Additional parts | equipped | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
