1013550000 | Weidmüller
Pin header, 13 pole, pitch 5.08 mm, straight, black, 1013550000
Order No.: 50P2542
EAN: 4032248721696
MPN:
1013550000
BLF 5.08HC/13/180 SN BK BX
Unit Price (€ / pc.)
7.4256 € *
Standard delivery time from the manufacturer is: 6 Weeks

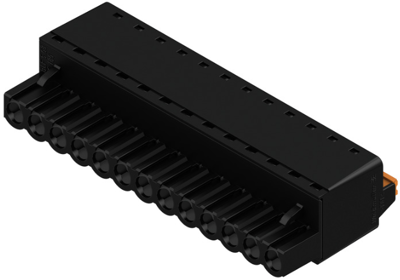

Male connector, 1013550000, Weidmüller
Printed Circuit Board Connector, Male Connector, Side Closed, 5.08 mm, No. of Poles: 13, tinned, black, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 24 A | |
| Grid | 5.08 mm | |
| Pin number | 13 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
