1013180000 | Weidmüller
Pin header, 11 pole, pitch 5.08 mm, straight, orange, 1013180000
Order No.: 50P2517
EAN: 4032248720934
MPN:
1013180000
BLF 5.08HC/11/180F SN OR BX
Unit Price (€ / pc.)
9.1630 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
9.16 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1630 €
10 pcs.
8.5204 €
50 pcs.
7.7588 €
*incl. VAT plus shipping costs
**Subject to prior sale

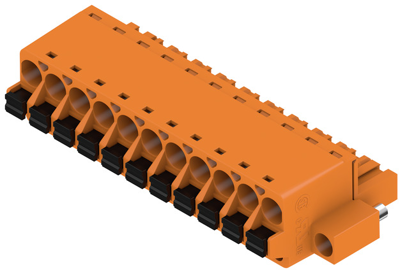

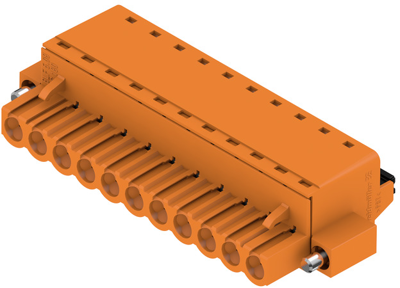

Male connector, 1013180000, Weidmüller
Printed circuit board connector, male header, flange, 5.08 mm, no. of poles: 11, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 24 A | |
| Grid | 5.08 mm | |
| Pin number | 11 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | spring connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
