1013150000 | Weidmüller

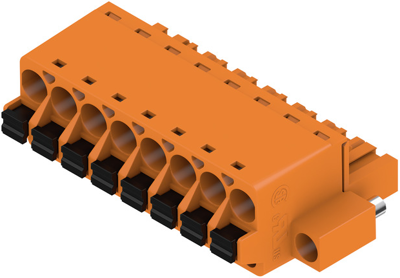

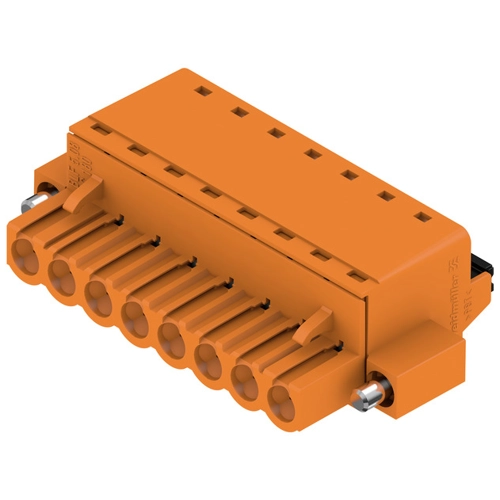

Pin header, 8 pole, pitch 5.08 mm, straight, orange, 1013150000
Order No.: 50P2514
EAN: 4032248720903
MPN:
1013150000
BLF 5.08HC/08/180F SN OR BX
Unit Price (€ / pc.)
6.2594 € *
Available: 35 pcs.
Available in 6 Days: 180 pcs. - if ordered today
Total Price:
6.26 € *
Price list
Quantity
Price per unit*
1 pcs.
6.2594 €
10 pcs.
5.8191 €
50 pcs.
5.3074 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1013150000, Weidmüller
Printed circuit board connector, male header, flange, 5.08 mm, no. of poles: 8, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | orange | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Connection | spring connection | |
| Rated voltage | 400 V | |
| Orientation | straight | |
| contact surface | tin-plated | |
| Version | pin header | |
| Pin number | 8 pole | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Rated current | 24 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
