1005180000 | Weidmüller

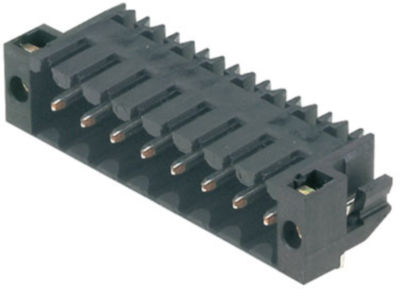

Pin header, 10 pole, pitch 3.5 mm, angled, black, 1005180000
Order No.: 50P2286
EAN: 4032248704545
MPN:
1005180000
SL-SMT 3.50/10/90LF 1.5SN BK RL
Unit Price (€ / pc.)
3.4867 € *
Standard delivery time from the manufacturer is: 6 Weeks
Male connector, 1005180000, Weidmüller
Printed circuit board connector, Löt flange, THT/THR Löt connection, 3.50 mm, number of poles: 10, 90°, 1.5 mm, tinned, black, tape (Ø 330 mm); Rs = 10
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 1 | |
| Rated current | 15 A | |
| Contact type | pin | |
| Grid | 3.5 mm | |
| Pin number | 10 pole | |
| Orientation | angled | |
| Rated voltage | 320 V | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| contact surface | tin-plated | |
| Colour | black | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
