1002120000 | Weidmüller
Pin header, 5 pole, pitch 5.08 mm, angled, orange, 1002120000
Order No.: 50P2149
EAN: 4032248694075
MPN:
1002120000
BLF 5.08HC/05/90F SN OR BX
Unit Price (€ / pc.)
4.7481 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
4.75 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7481 €
10 pcs.
4.4030 €
50 pcs.
3.9627 €
*incl. VAT plus shipping costs
Subject to prior sale

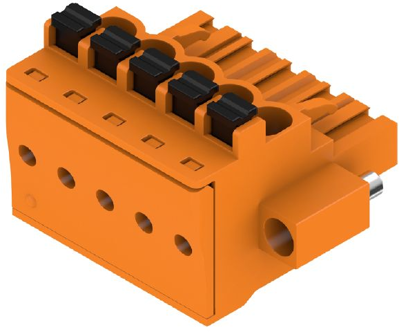

Male connector, 1002120000, Weidmüller
Printed circuit board connector, male header, flange, 5.08 mm, no. of poles: 5, tin plated, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring connection | |
| Colour | orange | |
| Additional parts | equipped | |
| Pin number | 5 pole | |
| Contact type | socket | |
| Orientation | angled | |
| Rated voltage | 400 V | |
| contact surface | tin-plated | |
| Version | socket header | |
| Rated current | 24 A | |
| Number of rows | 1 | |
| Grid | 5.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
