1001590000 | Weidmüller

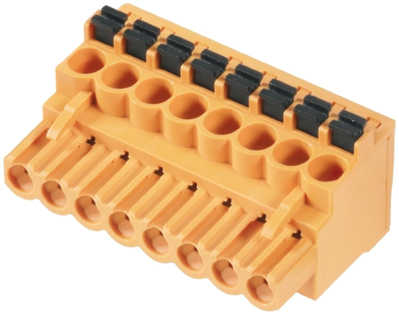

Pin header, 8 pole, pitch 5.08 mm, angled, orange, 1001590000
Order No.: 50P2099
EAN: 4032248693399
MPN:
1001590000
BLF 5.08HC/08/90 SN OR BX
Unit Price (€ / pc.)
4.8195 € *
Standard delivery time from the manufacturer is: 7 Weeks
Male connector, 1001590000, Weidmüller
PCB Connector, Male Connector, Side Closed, 5.08 mm, No. of Poles: 8, tinned, orange, Box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | spring connection | |
| Number of rows | 1 | |
| Colour | orange | |
| contact surface | tin-plated | |
| Version | socket header | |
| Orientation | angled | |
| Additional parts | equipped | |
| Rated current | 24 A | |
| Pin number | 8 pole | |
| Grid | 5.08 mm | |
| Rated voltage | 400 V | |
| Contact type | socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
