1001150000 | Weidmüller
Pin header, 2 pole, pitch 5.08 mm, straight, orange, 1001150000
Order No.: 50P2077
EAN: 4032248818020
MPN:
1001150000
BLDF 5.08/02/180 SN OR BX
Unit Price (€ / pc.)
2.4038 € *
Standard delivery time from the manufacturer is: 7 Weeks

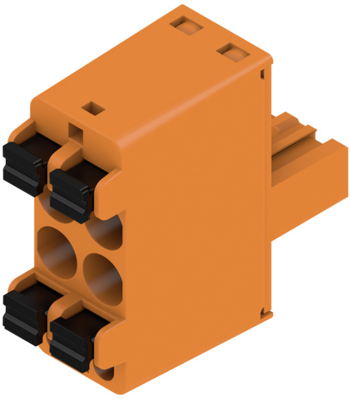

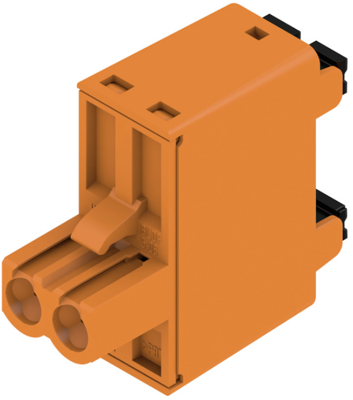

Male connector, 1001150000, Weidmüller
Printed circuit board connector, male connector, closed sideways, 5.08 mm, no. of poles: 2, tinned, orange, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | orange | |
| contact surface | tin-plated | |
| Rated current | 20.8 A | |
| Grid | 5.08 mm | |
| Pin number | 2 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | push-in spring connection | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
