1000870000 | Weidmüller
Pin header, 3 pole, pitch 5.08 mm, straight, black, 1000870000
Order No.: 50P2054
EAN: 4032248817276
MPN:
1000870000
BLDF 5.08/03/180 SN BK BX
Unit Price (€ / pc.)
3.4867 € *
Standard delivery time from the manufacturer is: 8 Weeks
Male connector, 1000870000, Weidmüller

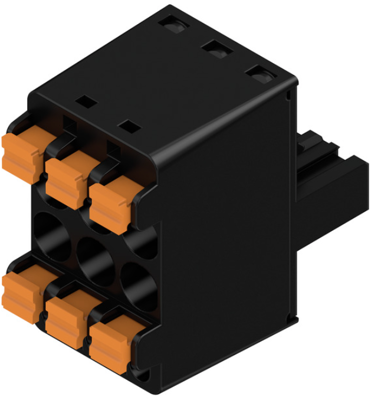

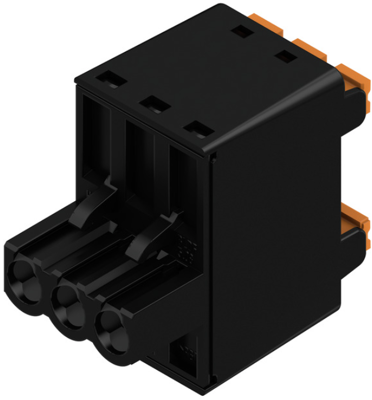

Printed circuit board connector, male header, closed side, 5.08 mm, no. of poles: 3, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Grid | 5.08 mm | |
| Version | pin header | |
| contact surface | tin-plated | |
| Rated current | 20.8 A | |
| Additional parts | equipped | |
| Contact type | pin | |
| Rated voltage | 400 V | |
| Colour | black | |
| Number of rows | 1 | |
| Pin number | 3 pole | |
| Orientation | straight | |
| Connection | push-in spring connection |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
