1000600000 | Weidmüller

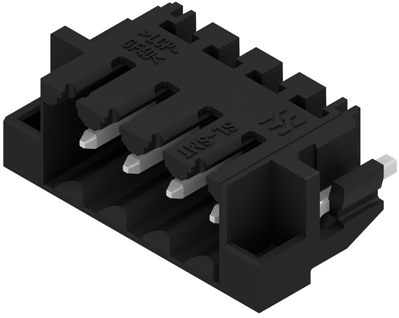

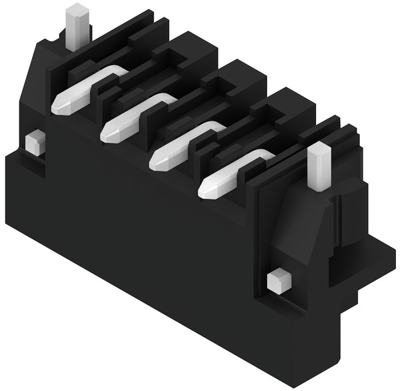

Pin header, 4 pole, pitch 3.5 mm, angled, black, 1000600000
Order No.: 50P2042
EAN: 4032248817115
MPN:
1000600000
SL-SMT 3.50/04/90RF 1.5SN BK BX
Unit Price (€ / pc.)
2.2967 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
10 pcs.
2.1420 €
50 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, 1000600000, Weidmüller
PCB connectors, snap-in flange, THT/THR solder termination, 3.50 mm, no. of poles: 4, 90°, 1.5 mm, tinned, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 4 pole | |
| Grid | 3.5 mm | |
| Connection | PCB connection | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 15 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
