1000200001 | Weidmüller
Pin header, 19 pole, pitch 5.08 mm, angled, black, 1000200001
Order No.: 50P2022
EAN: 4032248690152
MPN:
1000200001
BLF 5.08HC/19/90 SN BK BX
Unit Price (€ / pc.)
11.2931 € *
Standard delivery time from the manufacturer is: 7 Weeks

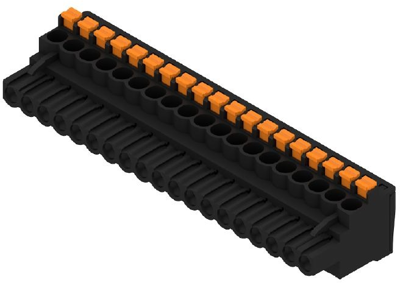

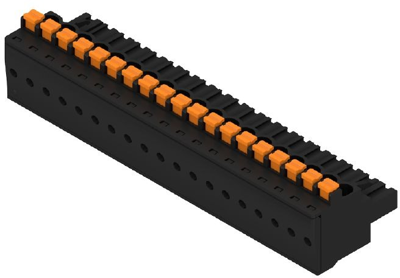

Male connector, 1000200001, Weidmüller
Printed circuit board connector, male header, closed sideways, 5.08 mm, no. of poles: 19, tin plated, black, box
Pluggable PCB connector with innovative connection technology for safe and intuitive handling.
Technical specifications
| Colour | black | |
| contact surface | tin-plated | |
| Rated current | 24 A | |
| Grid | 5.08 mm | |
| Pin number | 19 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | spring connection | |
| Contact type | socket | |
| Rated voltage | 400 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
