1010840020 | Weidmüller

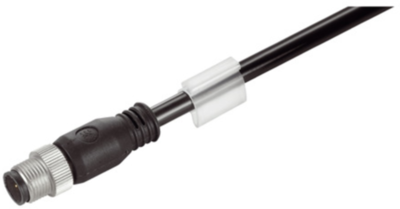

System cable, M12-plug, straight to open end, Cat 5e, SF/UTP, Radox GKW S, 2 m, black, 1010840020
Order No.: 50P2409
EAN: 4050118514544
MPN:
1010840020
IE-C5DB4RE0020MCSXXX-X
Unit Price (€ / pc.)
62.2489 € *
Standard delivery time from the manufacturer is: 7 Weeks
Dragline cable, 1010840020, Weidmüller
Data cable (assembled) copper, Halogens: halogen-free, according to IEC 60754-2, black.
Ready-to-connect data cable with copper core wires.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection (2) | open end | |
| Cable type | SF/UTP | |
| Degree of protection (IP) | IP67 | |
| Category | Cat 5e | |
| Material | Radox GKW S | |
| Colour | black | |
| Detent lever protection available | No | |
| Version | system cable | |
| Cable length | 2 m | |
| Connection (1) | M12-plug, straight | |
| Halogen free | Yes | |
| AWG cross-section | AWG 22-7 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85444290 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
