1268810000 | Weidmüller

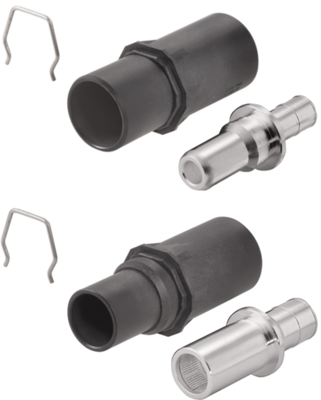

Plug, 1 pole, crimp connection, screw locking, straight, 1268810000
Unit Price (€ / pc.)
47.0050 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
47.01 € *
Price list
Quantity
Price per unit*
1 pcs.
47.0050 €
10 pcs.
45.1248 €
25 pcs.
42.8638 €
50 pcs.
40.7218 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact, 1268810000, Weidmüller
The 1268810000 is a highpower system with completely newly developed and coordinated components in three and four pin versions, represents a novel product solution for pluggable energy transmission – failure-free. This highpower system has a modular design and offers the customer a multitude of product solutions for all kinds of application sites and requirements. The overall structure has been adapted to the confined space of wagon-to-wagon coupling - small, light and powerful.
Features
- Impact resistant
- Dust-proof
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Cable cross-section | 70 mm² | |
| contact surface | silver-plated | |
| Version | plug | |
| Contact connection | crimp connection | |
| Pin number | 1 pole | |
| Cable diameter | 43 mm | |
| Shell Material | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85359000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
